Remove the FINCH Relay Module and FINCH 5332E Display
The following diagrams are included for your reference:

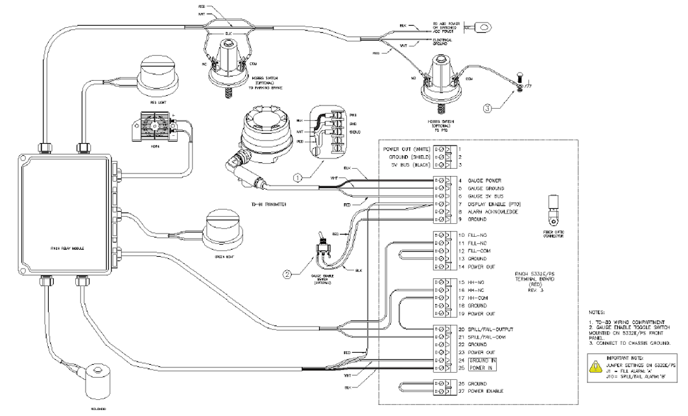

1 Compartment FINCH 5332E (Red Board) Installation Diagram

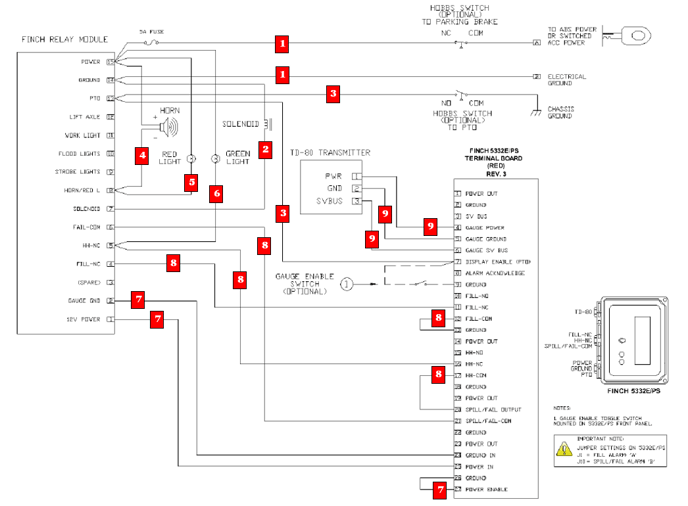

1 Compartment FINCH 5332E (Red Board) Wiring Diagram
Removal Steps:
- Open both your FINCH Relay Module and FINCH 5332E enclosures.

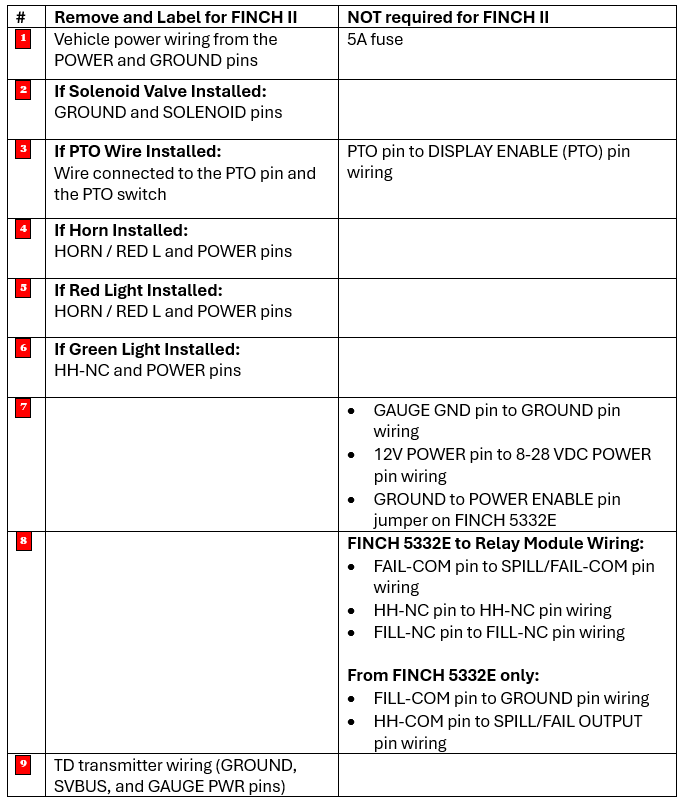

- Complete the following steps outlined below. The numbers in the table correspond with the above diagram.
- Unbolt and remove the FINCH Relay Module and FINCH 5332E display now that the wiring is disconnected.
TIP: Ensure you label your wires before taking anything out of the Relay Module. This will allow you to easily transfer these wires into the FINCH II circuit board in the next steps.
Consider saving the wires you no longer need from the FINCH Relay Module for future use or as extras during installation, as they may be needed for additional wiring.
