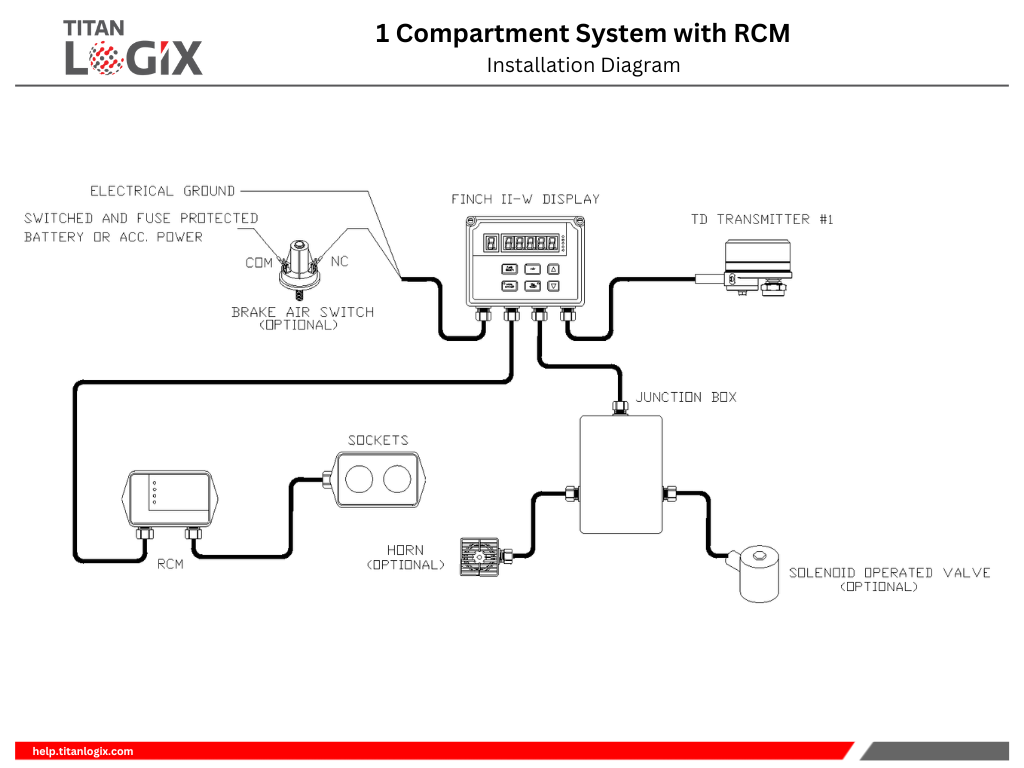

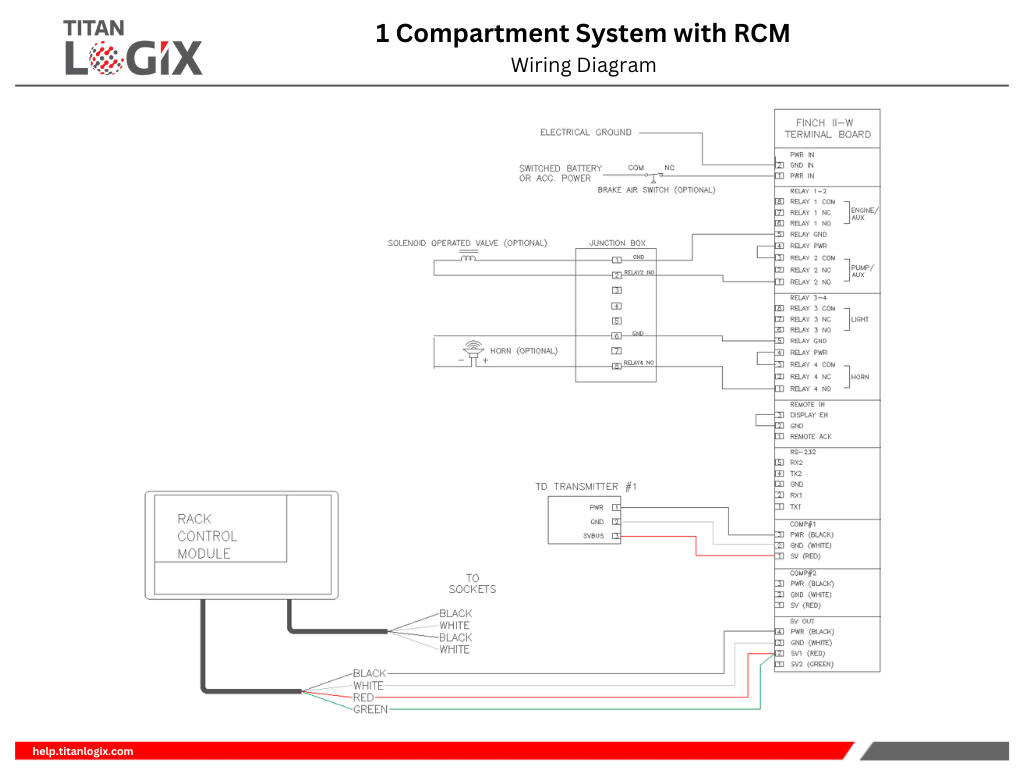

The images below show a visual of a 1 compartment system, that includes an external horn and solenoid operated valve installed on the tank.
Tip:
Click on the diagrams below to expand image to download the file.
