      FINCH 5332 INT Configuration (wiring diagram)

      Note:

      Refer to our website for the FINCH 5332 INT product support timeline.

      Perform all wiring in accordance with local governing regulations.

      Refer to the diagrams below for the location of the configuration jumpers and the I/O
      terminals on the FINCH 5332 INT Display.

      *Click on the wiring diagram to view in full screen.

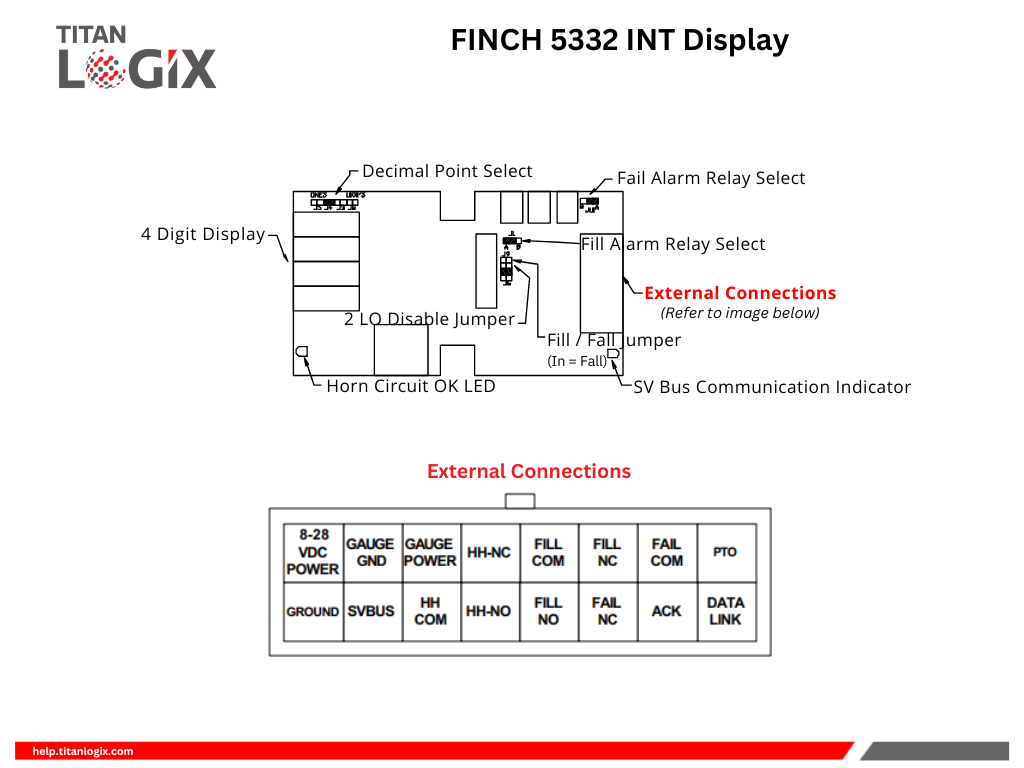

      FINCH 5332 INT Display
