# Dual API Socket to RCM (Canada) Wiring

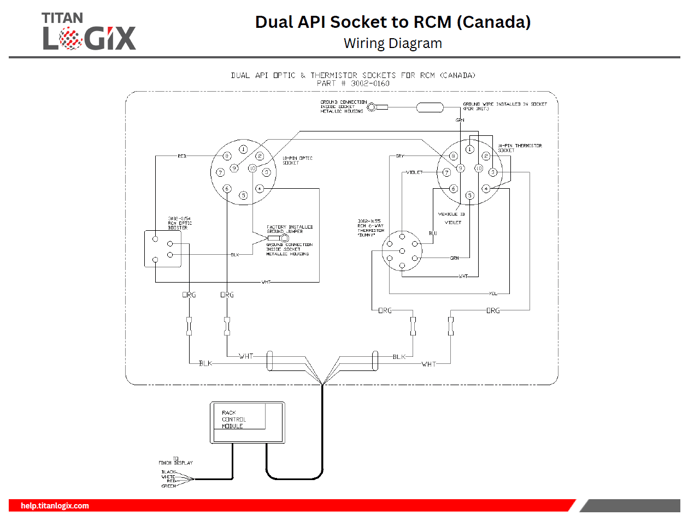

### Wiring Diagram
The Dual API Socket comes pre-wired with crimp terminals for an easier connection between the Orange wires from the Optic and Thermistor sockets to each pair of Black and White cable pairs from the RCM.
Refer to the wiring diagram below for more details on these connections.
*\*click on image to expand*
[**](https://help.titanlogix.com/hubfs/Dual%20API%20Socket%20to%20RCM%20(Canada).pdf?hsLang=en)
### **Wiring Steps:**
**1.** Separate the RCM cable wire pairs. There are two sets of black and white wires, which connect to each socket. Both Black/White wire pair work with either of the Optic and Thermistor socket crimp terminals.
**2.** Take the first pair of Black and White wires from the RCM and connect them to the respective crimped terminals on the Optic Socket.
**3.** Take the second pair of Black and White wires from the RCM and connect them to the respective black and white crimped terminals on the Thermistor Socket.
---
**Need more help?**
Contact one of our Titan Logix's Service Team members for more technical assistance.
**Phone:** 1-877-462-4085 (ext. 2)
**Email:** [service@titanlogix.com](mailto:service@titanlogix.com)
**Request Training:** [Click Here](https://help.titanlogix.com/kb-tickets/new?hsLang=en)
