TD100 Programming Through the Finch II-6W Display

TD100 strapping table programming and firmware updates through the Finch II-6W Display are done in a familiar way. The TD100 Transmitter is still programmable on a desk or bench before it is installed on the vehicle. The transmitters may also be programmed from the Finch II-6W Display after installation.

The difference for Finch II-6W displays is that:

• Compartments 3 to 6 transmitters must be programmed through the disconnected SVbus wiring. That’s the black, white and red wires. Each TD100 transmitter is programmed using the Transmitter Adapter Cable (Item 4 in the Programming Kit chart below) with the alligator clips. This is the familiar method for programming the transmitter on the bench.
• Compartment 1 and 2 transmitters are connected using the Finch II Programming Adapter for Transmitter cable (item 6 in the Programming Kit chart below) through the usual SVOUT connector. This is the familiar programming and updating method for 1 or 2 compartment installations.

To program and update the transmitters on compartments 3 to 6:

Important Note:

• Remove only one set of compartment 3 to 6 wires at a time.
• Once the Black, White and Red wires are disconnected, use the alligator clips to connect to the TD100 Transmitter.
• When programming or updating is complete, replace the 3 wires before moving on to another compartment.

  • Black wire to +

  • White wire to –

• • Red wire to the compartment number 3, 4, 5 or 6.

See the diagrams and photos below for guidance.

1. If the transmitter on compartment 3 requires programming or updating, unplug the daughterboard connector for compartments 3 and 4.
2. Disconnect the black, white and red wires for compartment 3.
3. Connect the programming kit alligator clips to the 3 wires.
4. Program or update the transmitter on compartment 3.
5. Reconnect the black, white and red wires to the daughterboard connector.
6. If the transmitter on compartment 4 requires programming or updating, repeat steps 2 to 5 for that transmitter.
7. Plug the compartment 3 and 4 connector back into the daughterboard.
8. If required, repeat steps 1 to 7 for compartments 5 and 6 by unplugging the compartment 5 and 6 connector.

Programming Connections

Directly to the TD100 Transmitter for Compartments 3, 4, 5 and 6

Through the Finch II-6W Display for Compartments 1 and 2

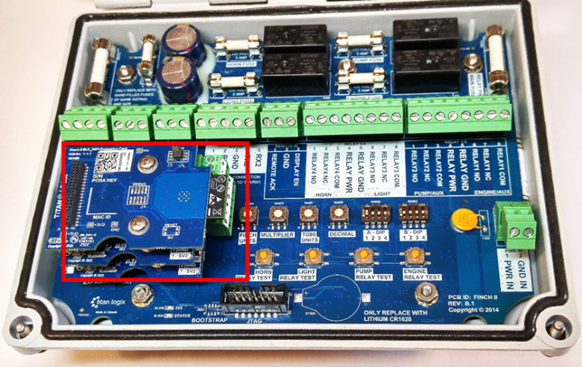

Compartments 3 to 6 Connectors

Compartments 3 to 6 Wiring

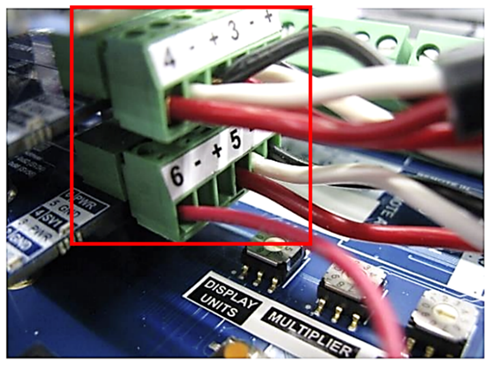

Each set of Black, White and Red wires from compartments 3 to 6 TD100 Transmitter is connected to the daughterboards.

The compartment numbers are labeled on the daughterboard connectors.

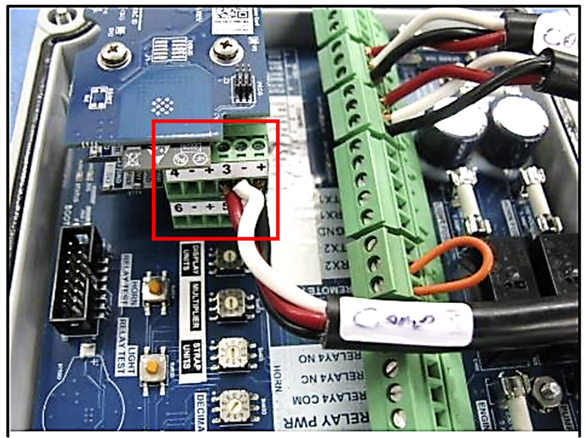

Compartment 3 and 4 Connector Removed for Transmitter Programming or Updating

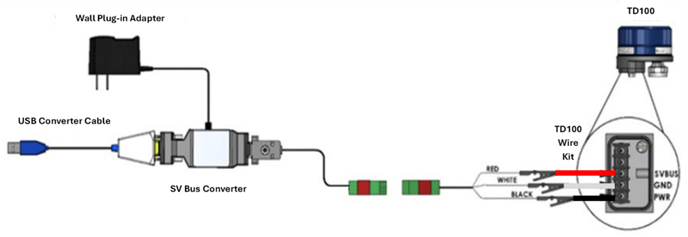

The Black, White and Red wires connect through the TD100 Wire Kit to the transmitter terminals labeled PWR, GND and SV.
