# Pump/Hydraulic Controls
- Hydraulic pump control is a very common method of overfill protection that can be controlled by the **Pump/Aux Relay 2**.
- It is best to use a high quality solenoid controlled **Normally Open** valve appropriate for the application. They are available from many hydraulics component vendors.
- The solenoid can be wired directly to the FINCH II pump relay. This relay will **shut off** the **pump** when the liquid level reaches the **HH (High High)** alarm point set in the TD100 programming.
- The pump can be **reactivated** to clear the hoses of product. The next **shutdown** point will be the **SPILL** alarm level also set in the TD100.
**Important:**
Unlike the HH alarm the **SPILL** alarm disengages the pump and c**annot be acknowledged**, therefore the product will need to be **pumped down** externally by **at least 1”** below the **SPILL** alarm level before the onboard pump will re-engage.

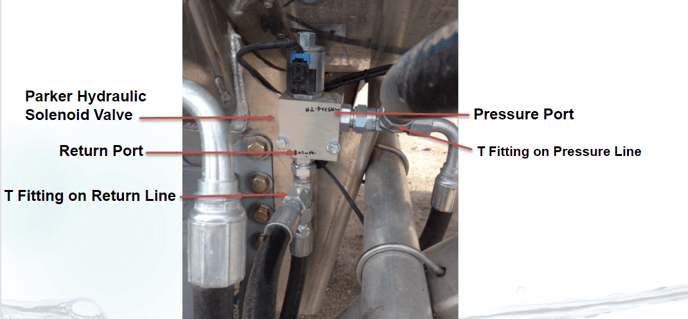

- The Parker valve is installed between the hydraulic pressure line (on the input of the controls manifold) and the by-pass line to the reservoir.
- A "T" fitting is installed on each line and the valve is installed in between these fittings.
- The **Normally Open** valve is supplied power when the system is good to pump forcing pressure through the control body.
- The system removes power in an alarm event allowing the pressure to bypass the controls.
---
**Need more help?**
Contact one of our Titan Logix's Service Team members for more technical assistance.
**Phone:** 1-877-462-4085 (ext. 2)
**Email:** [service@titanlogix.com](mailto:service@titanlogix.com)
**Request Training:** [Click Here](https://help.titanlogix.com/kb-tickets/new?hsLang=en)
