Import Strapping Table Files To The Titan Portal

TD100 files created using SensorLink may be imported into The Titan Portal for use by the Install app. These same files may be exported or saved outside of the Portal for safe-keeping or to use in SensorLink.

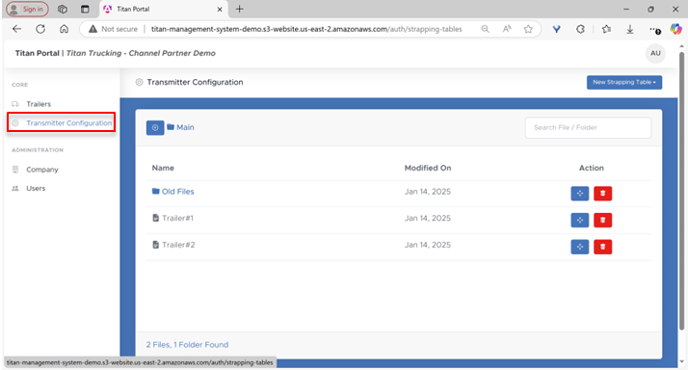

1. Under the CORE Menu, click Transmitter Configuration.

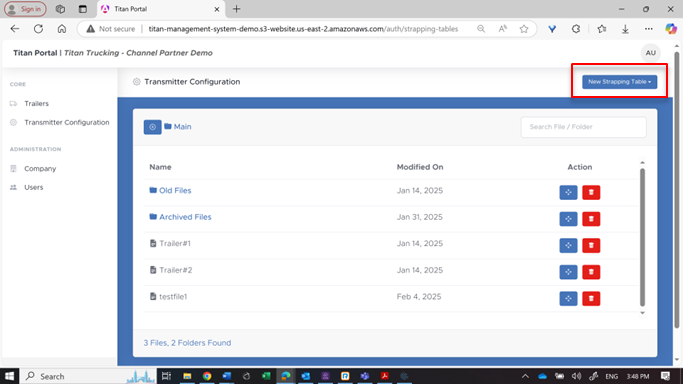

2. Click the New Strapping Table button.

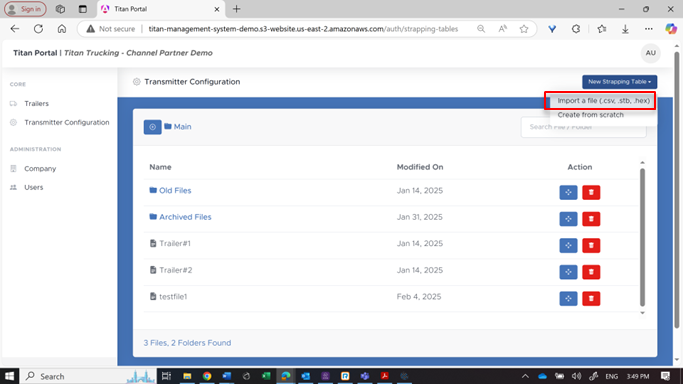

3. Click Import a File. The file formats available for download are .csv, .stb or .hex. The most common file to import is the .stb file.

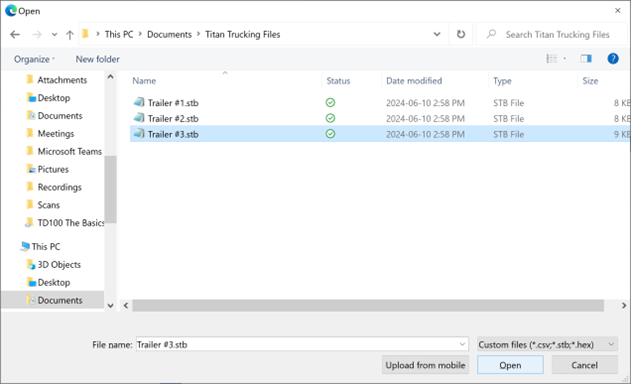

4.  Navigate to the folder where the file is stored.

5. Select the file and then click the Open button.
6. The next sequence of screens allows you to verify the strapping table content before it is saved in the Portal.

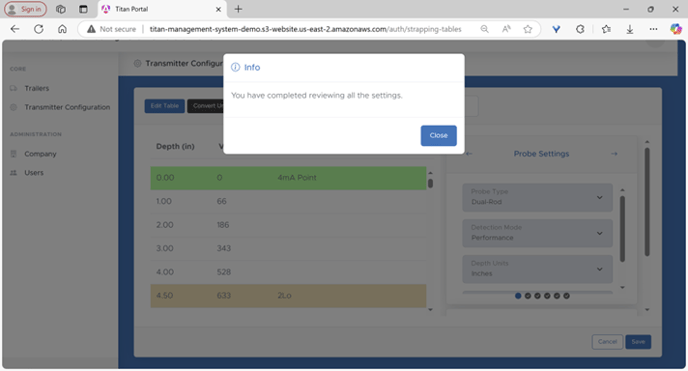

7. Click the right arrow to view each page of settings. Click the Close button when all the settings have been viewed.

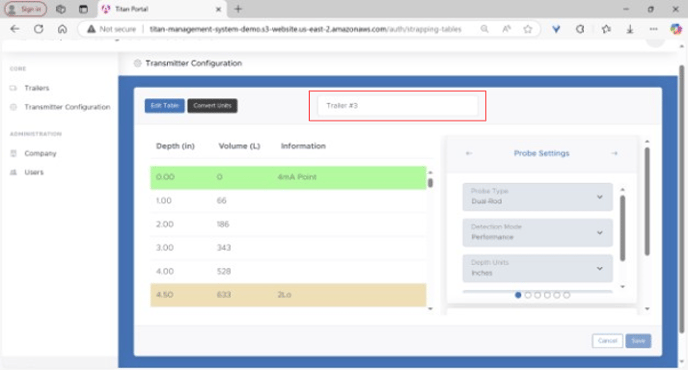

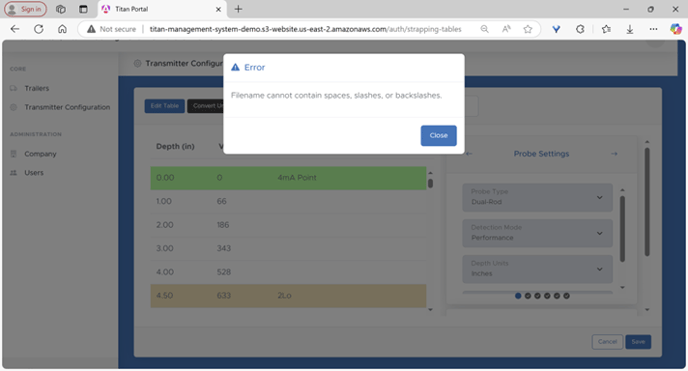

8. The file name can be changed at this point. The file name cannot contain spaces, slashes or backslashes.


9. Click the Save button.

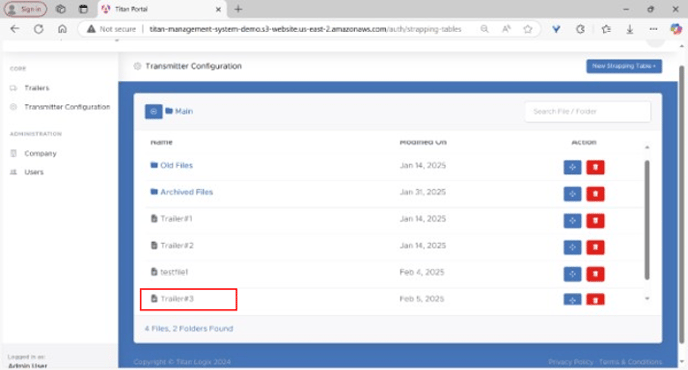

10. The newly imported file appears in the list of files.





    ---
