How to Install the Keyspan USB Driver?

The TD100 programming kit requires additional software or a driver to be installed before first use.

A USB to RS232 Converter is included with the Titan-supplied programming kit. The driver for this converter must be installed according to the manufacturer’s instructions. An Internet connection is required to download and install the correct COM Port driver.

The Legacy Keyspan USB to RS232 Converter


Manual driver installation is required. See SensorLink Help to download and install the driver for Windows 10.

For Windows 11, Click the link below for USA-HS19A installation instructions.
Keyspan USA-HS19A Windows 11 Driver

  • Download the USA-HS19A Windows 10,11 driver
  • Unzip the downloaded file
  • see the unzipped README.txt file for installation instructions
  • Do not plug in the the USB to RS232 Converter until prompted.


Before you start:

  1. Ensure your computer is connected to the Internet.
  2. Do not plug in the USB to RS232 Converter until prompted.

Step-By-Step Installation Instructions for Windows 10

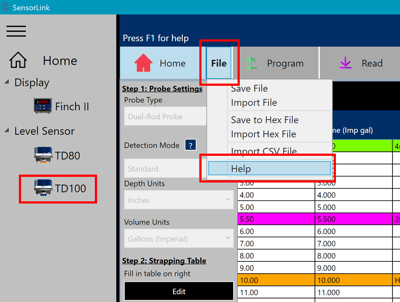

  • Open SensorLink
  • Select the TD100 programming page.
  • Click File and then Help or press F1.

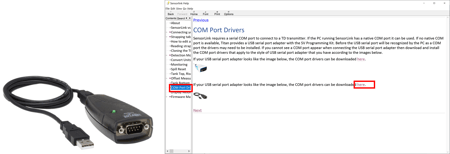

  • On the left-hand side of the screen, click on COM Port Drivers.

  • For the Keyspan USB-RS232 Converter, click the herelink to start the driver download.

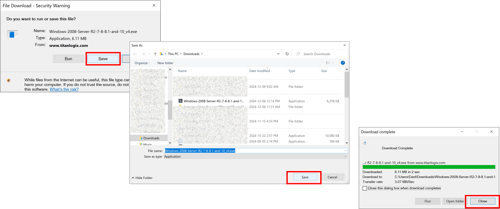

  • Click on Save
  • Then click on Save
  • Then click on Close

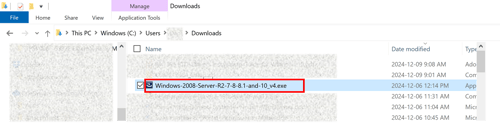

  • Double-click the downloaded filename
    Windows-2008-Server-R2-7-8-8.1-and-10_v4.exe

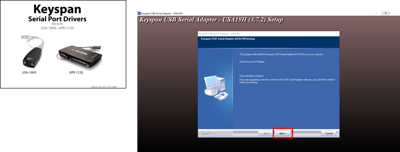

  • The splash screen is next to identifying the USA-19HS Converter.
  • The Wizard begins. Follow each step in the Wizard.
  • Ensure that the converter is unplugged from the PC.
  • Click on Next

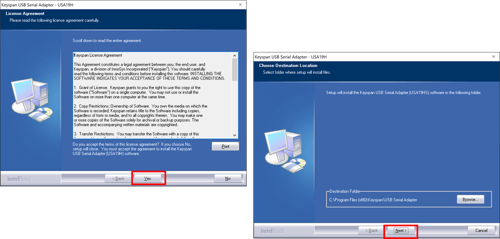

  • Click on Yes to accept the terms of this license agreement.
  • Then click on Next to begin the installation.

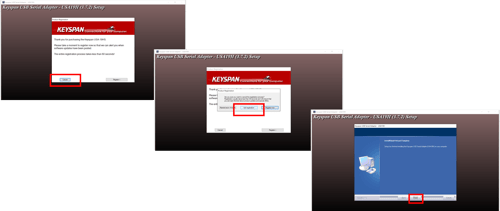

  • Click on Cancel
  • Then click on Exit registration
  • Then click on Finish

The COM Port driver installation is now complete




Need more help?

Contact one of our Titan Logix's Service Team members for more technical assistance.

Phone: 1-877-462-4085 (ext. 2)
