How to Install the FTDI USB Driver?

The TD100 programming kit requires additional software or a driver to be installed before first use.

A USB to RS232 Converter is included with the Titan-supplied programming kit. The driver for this converter must be installed according to the manufacturer’s instructions. An Internet connection is required to download and install the correct COM Port driver.

Download driver here or from the SensorLink Help File under TD100 Configuration page:

FTDI Branded USB DRIVER

Currently supplied FTDI Branded USB to RS232 Converter

See SensorLink Help to manually download and install the driver.

• Ensure your computer is connected to the Internet.
• Plug in the USB to RS232 Converter
• Follow the on-screen prompts.

Step-By-Step Instructions

• Open SensorLink
• Select the TD100 programming page.

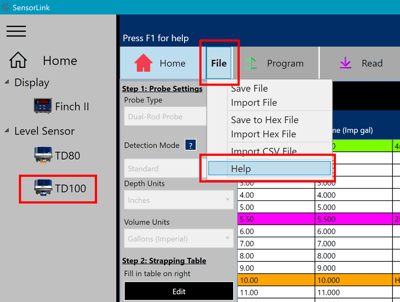

• Click File and then Help or press F1

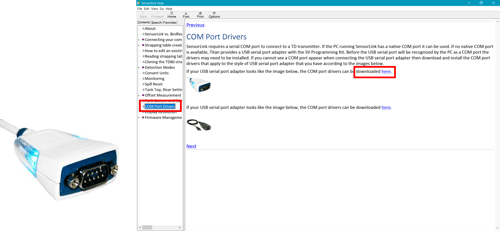

• On the left-hand side of the screen, click on COM Port Drivers.
• For the FTDI Branded USB-RS232 Converter, click the “here” link to start the driver download.

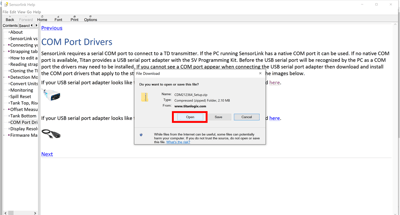

• Click the Open button to begin downloading the driver.

• Double-click on the filename CDM212364_Setup.exe

Note that the numbers in this filename may be slightly different. The important part is that it begins with “CDM” and ends with “_Setup.exe”.

• Click the Extract button.

• Click the radio button for “I accept…” and then click the Next button.

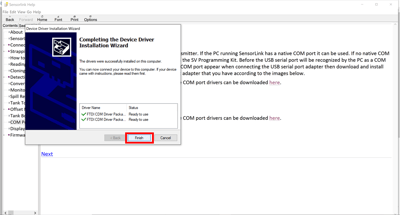

• Click the Finish button. The COM Port driver installation is complete. You may now close the Help Window.
