How to Import an STB file into SensorLink

1.  Open TD100 utility on SensorLink software.

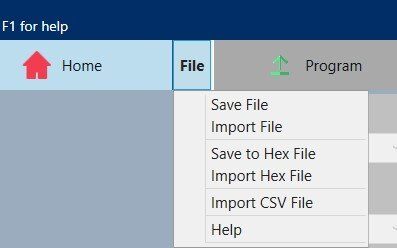

2.  Click the File button to open the menu.

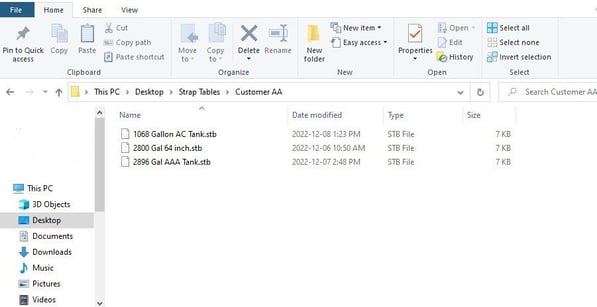

3.  Click Import File to select the appropriate strapping table file from your computer drive.

4.  Select the appropriate file (*.stb) format from your computer drive.

5.  Click Open to view this table in SensorLink.

6.  If you need to change anything to this file, click the Edit button to make changes.

7.  Click Done button to finish this step.

Offset Measurement

Ensure you update the Offset Measurement to your exact tank specifications for the compartment.
1.  Click the Offset Measurement button to edit offset measurement values.

2.  Insert the tank thickness and select the appropriate unit from the drop-down.

3.  Insert the probe offset and select the appropriate unit from the drop-down.

4.  Click OK to exit the offset measurement dialog box.

Other Changes

1.  Change alarm settings and optional settings as per installation requirements.

2.  Save your file to your computer if you made any changes to it.

Now you are reading to program your transmitter with these specifications.
