Flo Pro 9100 Battery Changing Guidance and Product Manual

Legacy Product:

Please be aware that Titan Logix has classified the Flo Pro 9100 product line as a legacy offering, which means that support for it is limited.

However, we do continue to sell the Alkaline Battery Pack for the Flo Pro 9100, available for purchase as needed.


The Flo Pro 9100 is an intrinsically safe flow totalizer and rate meter. The Flo Pro 9100 accepts input pulses from a turbine meter, and uses those pulses to calculate the flow total and rate in a pipeline.

The Flo Pro 9100 displays the information on a built in, high contrast, LCD display. For connection to a standard RTU or PLC, the Flo Pro 9100 also has a pre scaled or K factored pulse output (optional). For true stand alone operation the Flo Pro 9100 uses a 6V battery pack with a minimum life of 4 years.

Battery Changing Guidance

Refer to the Flo Pro 9100 manual pages 14, 15 and 16 for battery changing guidance. The battery must be changed when a low battery condition is indicated to prevent loss of settings.


Low battery condition is indicated by the tag (!) on the left-side of the screen. Change the battery as soon as possible. The unit usually has about 1 month of battery life left from when the tag first appears.

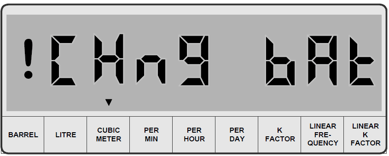

When you see the message below, the unit is no longer operational. The battery must be changed.


When the screen is blank and does not turn on, the battery is dead. The settings have been lost and must be reentered manually. Refer to the Flo Pro 9100 manual for the settings.

Click the link below to download our Flo Pro 9100 Product manual.
Flo Pro 9100 Product Manual




Need more help?

Contact one of our Titan Logix's Service Team members for more technical assistance.

Phone: 1-877-462-4085 (ext. 2)
