FINCH III to API Sockets (wiring diagrams)

FINCH III connects directly to standard optic and thermistor sockets during rack loading, eliminating the need for extra hardware on the truck. (No more Rack Control Module required)

A newly integrated LED indicator enhances visibility, providing real-time confirmation of the socket connection status for seamless and efficient operation.

*Click on the diagrams below to expand image to download the file.

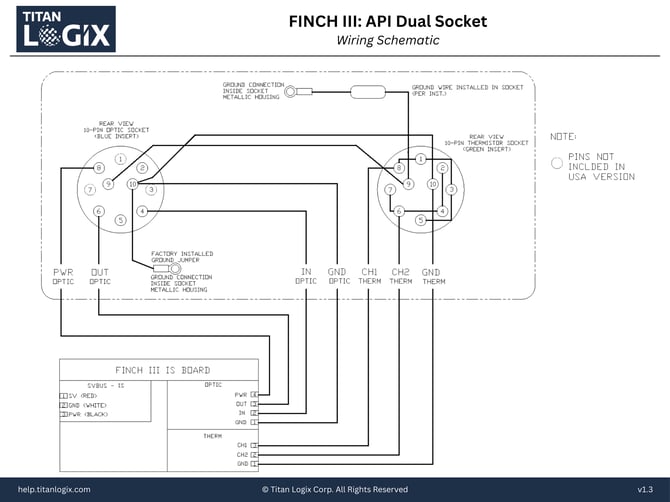

FINCH III > API Dual Socket

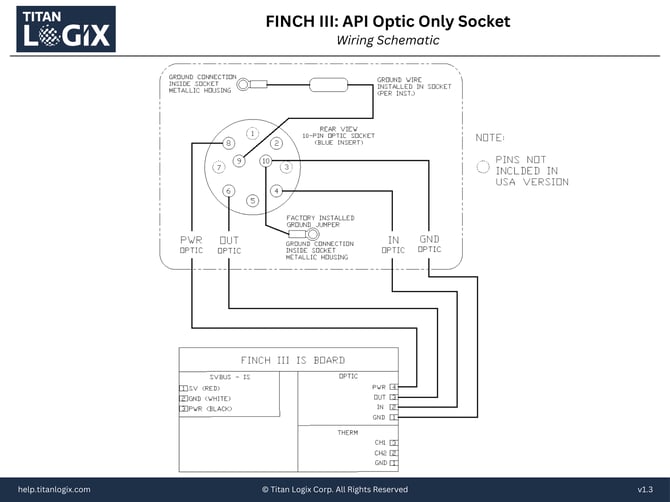

FINCH III > API Optic Only Socket

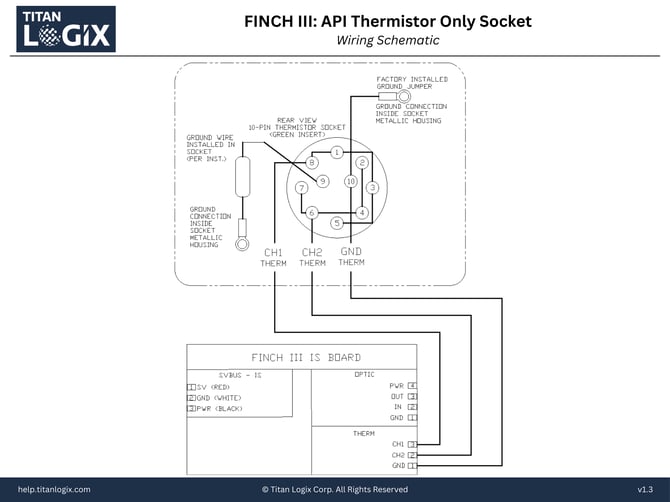

FINCH III > API Thermistor Only Socket

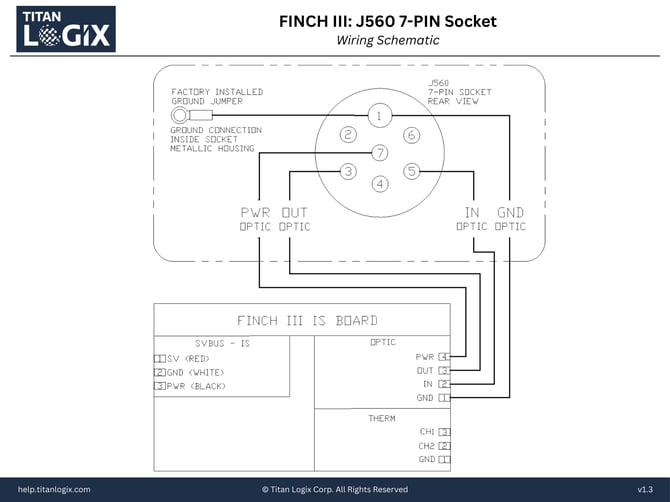

FINCH III > J560 7-PIN Socket (Western Canada)
