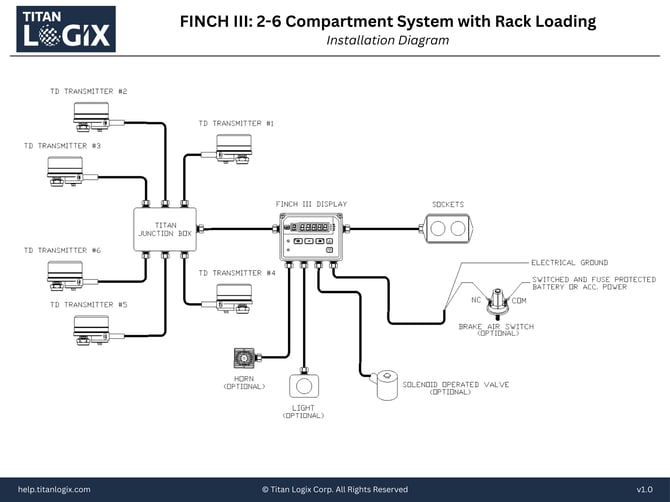

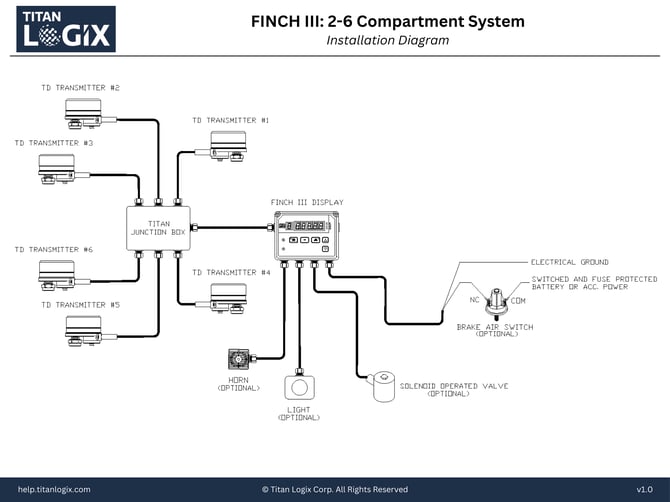

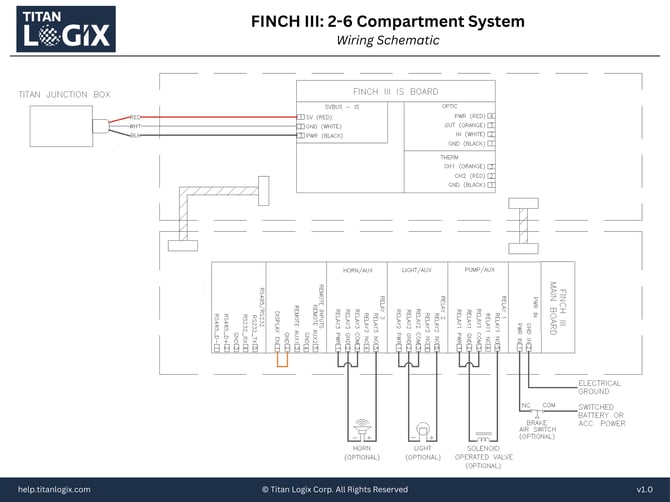

The images below show a visual of a 2 - 6 compartment system, that includes an external horn and solenoid operated valve installed on the tank. Our Titan Smart Junction Box is required for 2 or more compartments, which assists in easier troubleshooting and wiring.
*Click on the diagrams below to expand image to download the file.
Rack Loading Systems
The image below shows a visual of a 1 compartment system, that includes an external horn and solenoid operated valve installed on the tank, connected to a standard API Socket.
Refer to our Wiring Schematics section to find the specific API socket you are connecting your FINCH III System to. CLICK HERE
*Click on the diagrams below to expand image to download the file.
