Non-Rack Loading Systems

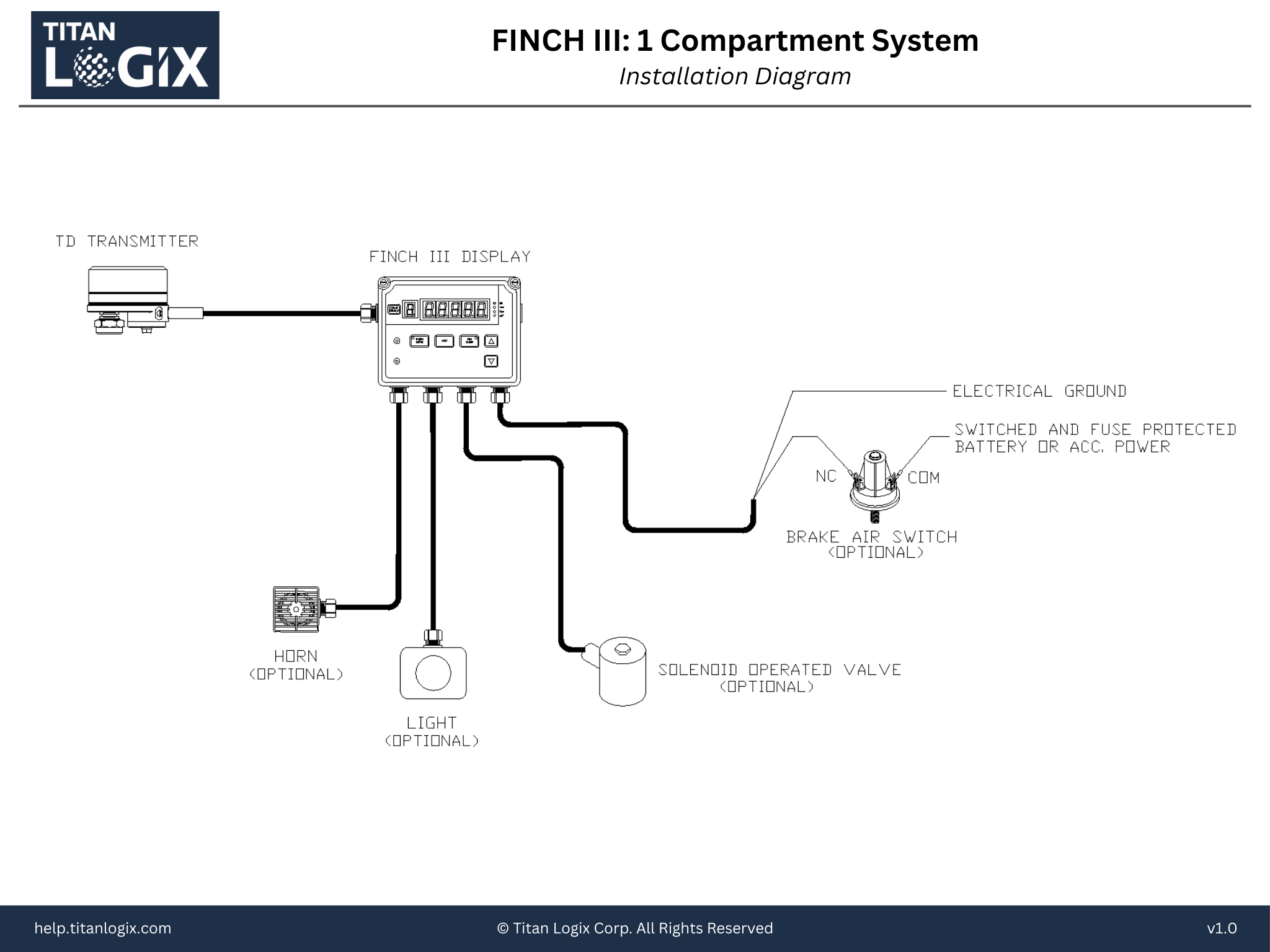

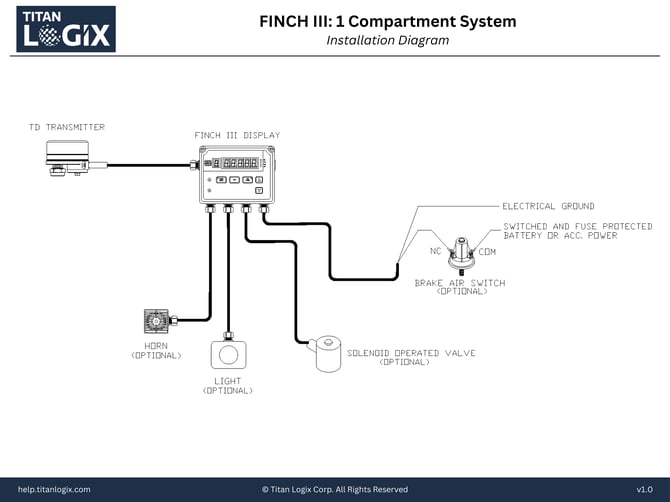

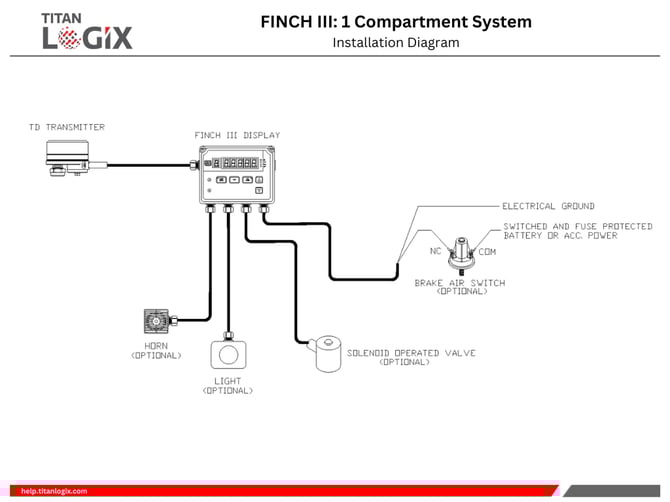

The images below show a visual of a 1 compartment system, that includes an external horn and solenoid operated valve installed on the tank.
*Click on the diagrams below to expand image to download the file.
Rack Loading Systems

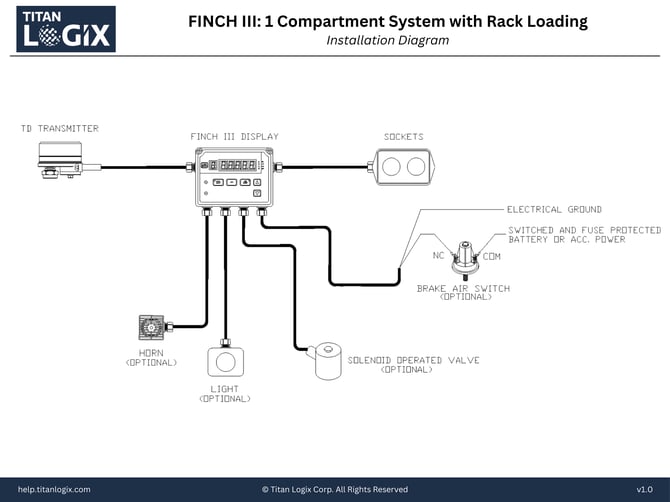

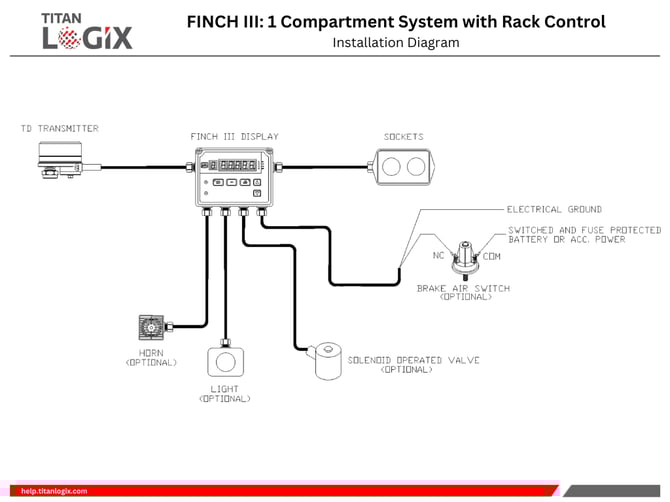

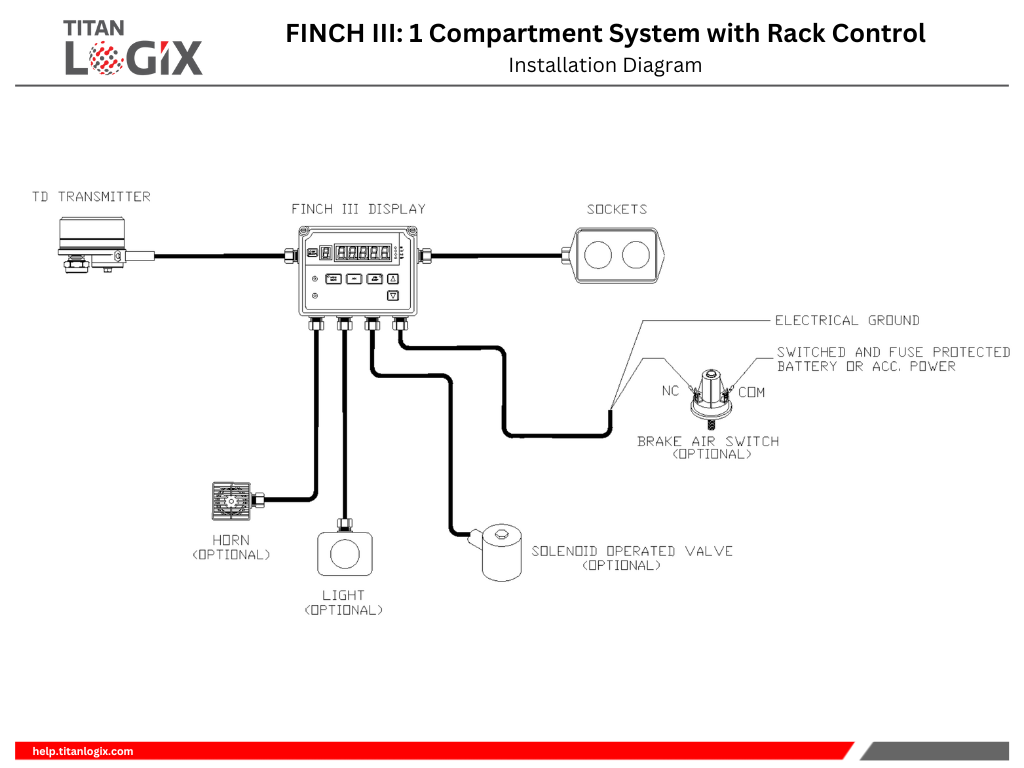

The images below show a visual of a 1 compartment system, that includes an external horn and solenoid operated valve installed on the tank, connected to a standard API Socket.
*Click on the diagrams below to expand image to download the file.

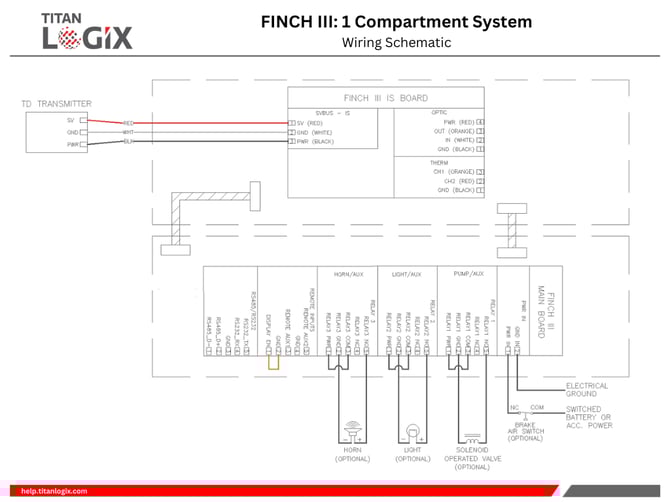

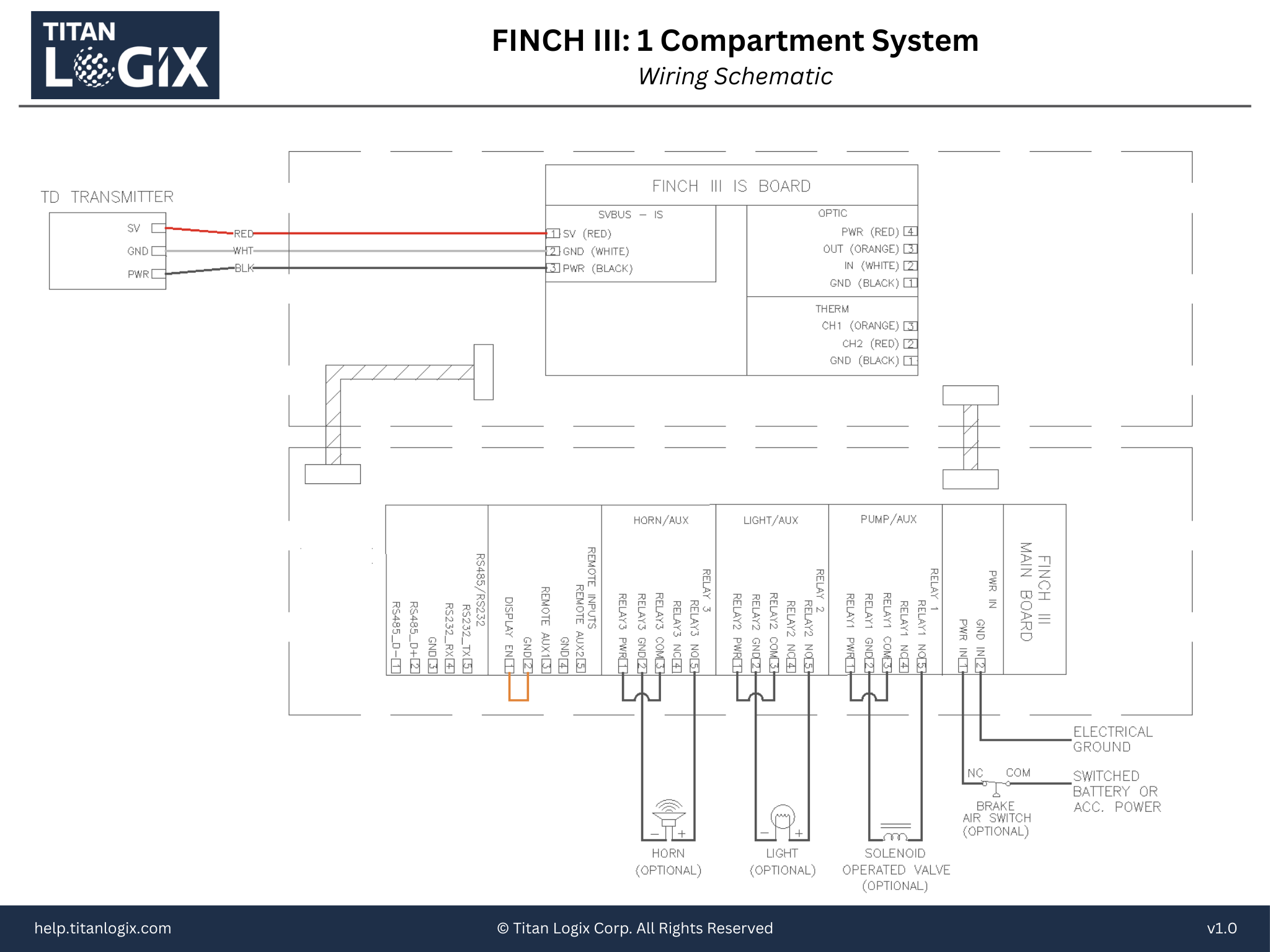

Refer to our Wiring Schematics section to find the specific API socket you are connecting your FINCH III System to. CLICK HERE
