GAUGE: FINCH 5332E (FINCH I)
      Back to home
      1. Titan Help Center
      2. Discontinued Products
      3. GAUGE: FINCH 5332E (FINCH I)

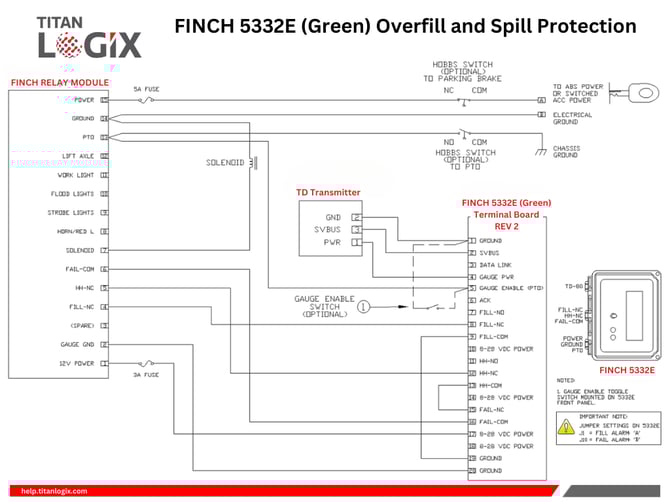

      FINCH 5332E (Green) Overfill and Spill Protection Configuration (wiring diagram)

      *Click on the wiring diagram to view in full screen.

      FINCH 5332E (Green) Overfill and Spill Protection
