Onboard Pump Control with FINCH III

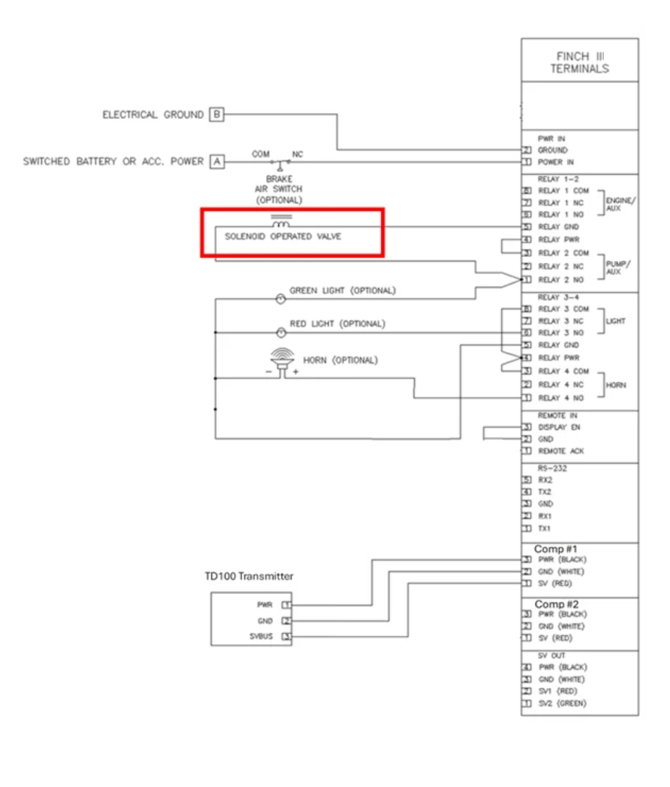

The wiring diagram below is the most common relay wiring for Spill prevention and uses the factory default settings. You do NOT need to configure your FINCH III Display if using this wiring setup.

Optional components that may be installed depending on customer requirements are also included in the wiring diagram.

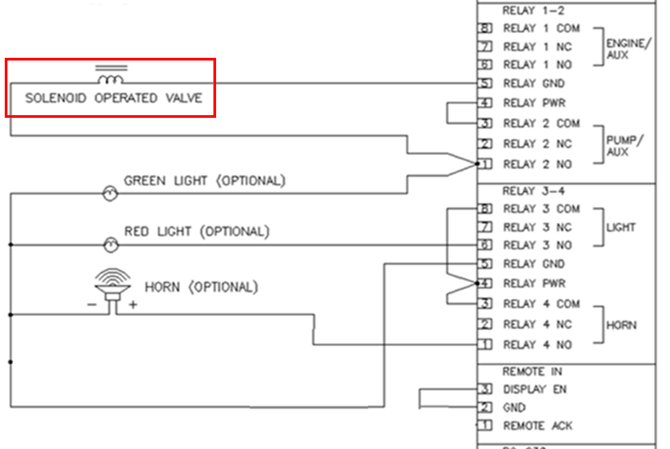

Here’s a close up of the most common relay wiring.
