Export Strapping Table Files From The Titan Portal

 TD100 files may be exported or saved outside of the Portal for safe-keeping or to use in SensorLink. These same files may be imported into The Titan Portal for use by the Install app.

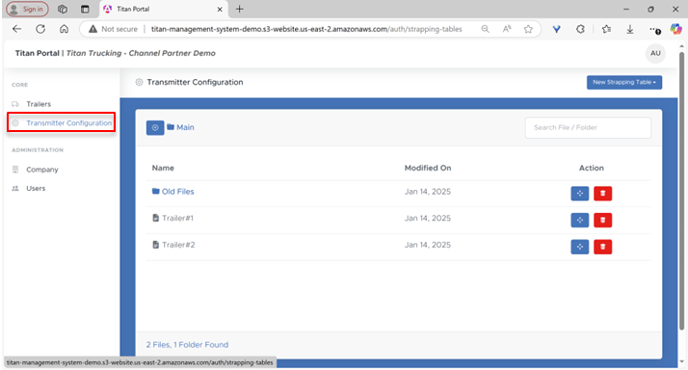

1. Under the CORE Menu, click Transmitter Configuration.

2. Click the Strapping Table file to Export.

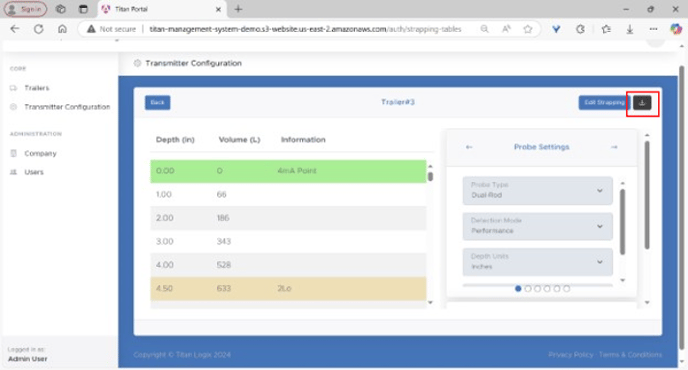

3. Click the Download button.

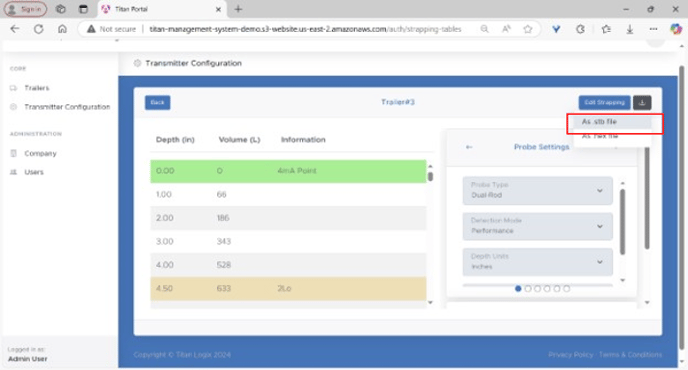

4. Click “As .stb file”. The .stb file is the most common file used for programming transmitters.

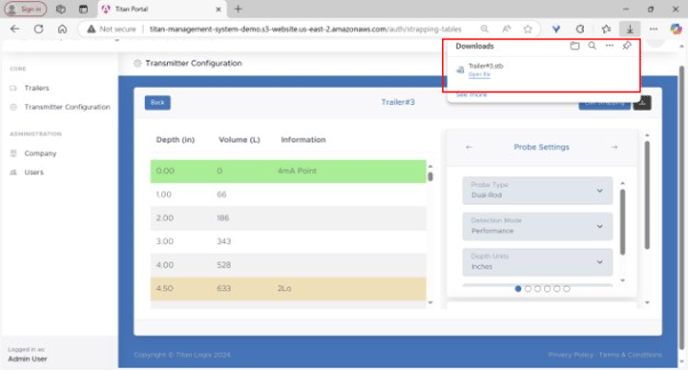

5. You will now find the downloaded .stb file in the Downloads folder.
