# Create And Upload Strapping Tables To Titan Portal
Strapping table files may be created from scratch using the Portal. These files are then available for mechanics to program transmitters and for administrators to import/export them.

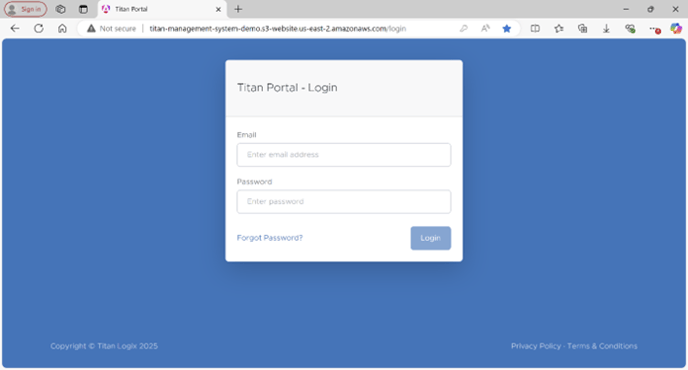

1. Log into your Titan Portal account.

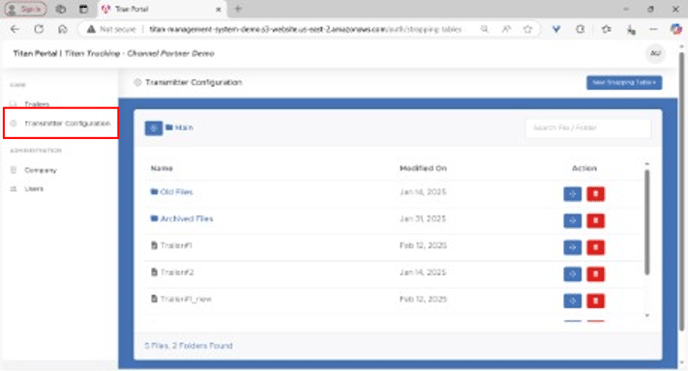

2. In the CORE menu, click Transmitter Configuration.

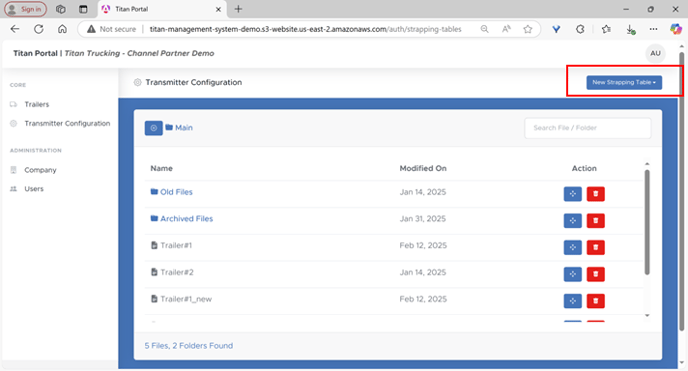

3. Click the New Strapping Table button.
4. Click Create from scratch.

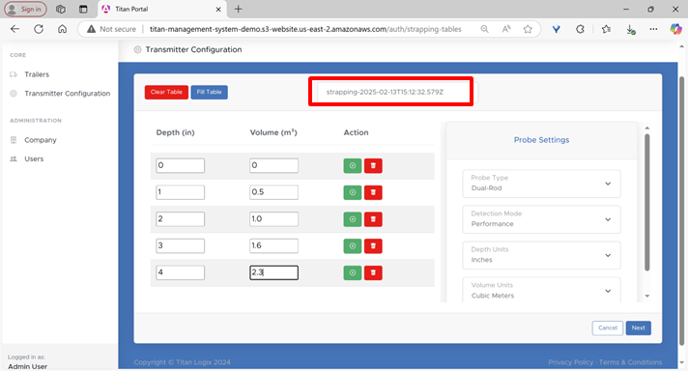

5. Enter the new strapping table file name.
6. The 1st entry of 0 depth and 0 volume have already been filled in. All strapping tables must begin with 0 and 0.

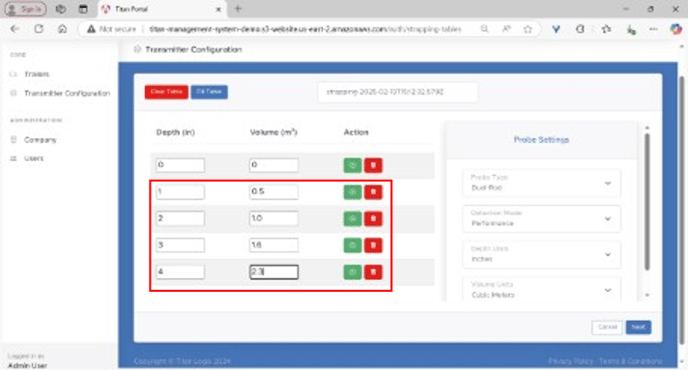

7. Enter the depth and volume values from the depth chart provided by the customer. Click the Add Row button to keep adding rows until all the values have been entered.

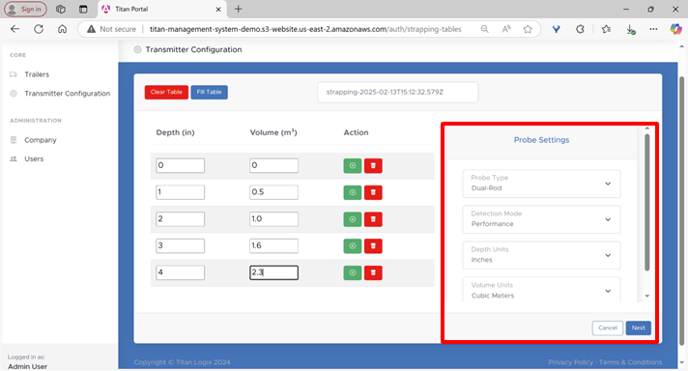

8. Set the Probe Type, Detection Mode, Depth Units and Volume Units. Click the Next button to continue.

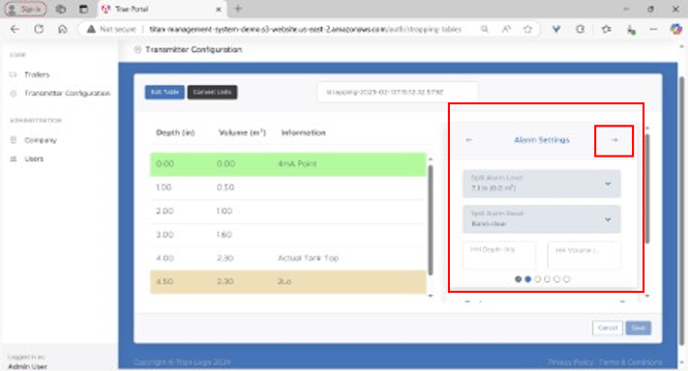

9. Set or review the Spill alarm options and then enter HH alarm volume or depth. Click the right arrow next to Alarm Settings to continue.

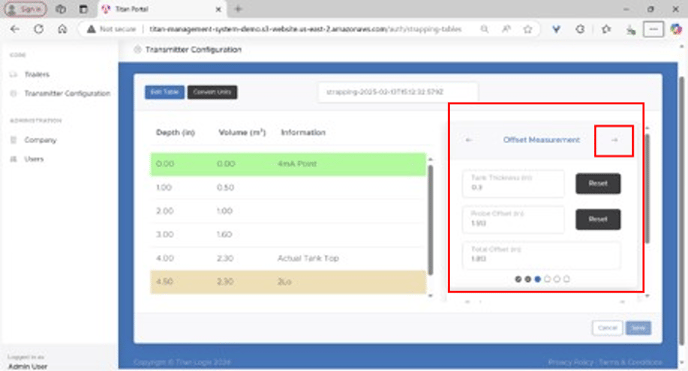

10. Enter the Offset Measurement values for Tank Thickness and Probe Offset. Click the right arrow next to Offset Measurement to continue.

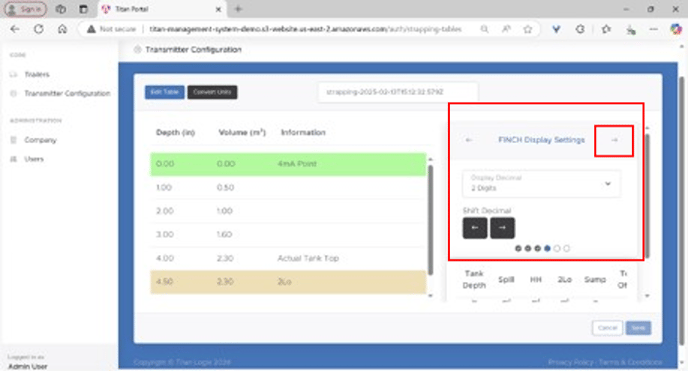

11. Set the Display Decimal and Decimal Shift if required. Click the right arrow next to FINCH Display Settings to continue.

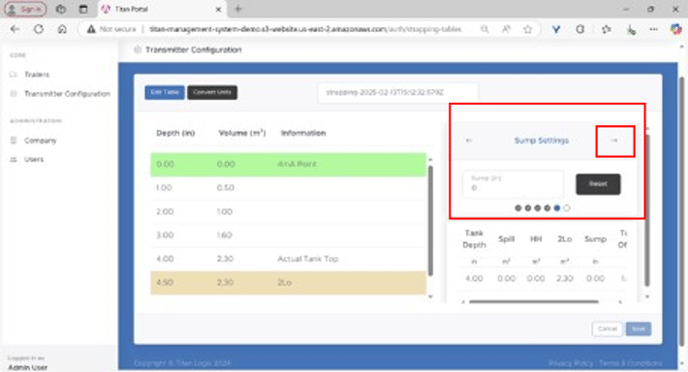

12. Enter the Sump depth if required. Click the right arrow next to Sump Settings to continue.

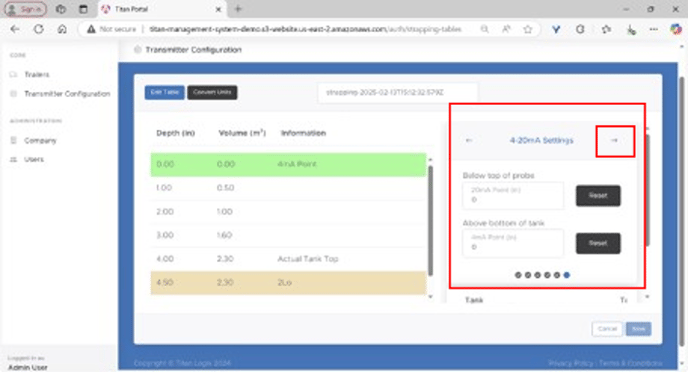

13. Set the 4-20mA settings if required. Click the right arrow next to 4-20mA Settings to continue.
14. This screen confirms that all settings have been completed or reviewed. Click the Close button.

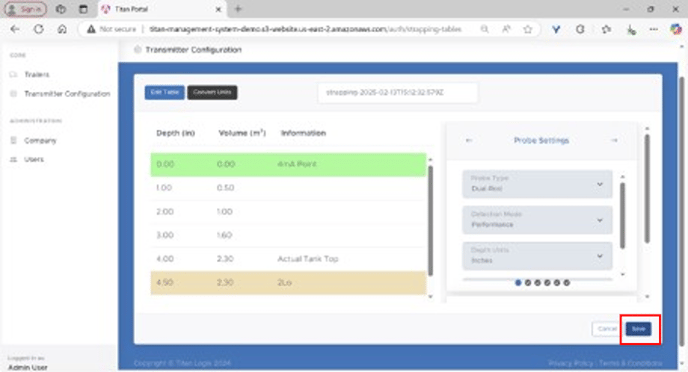

15. Click the Save button in the lower right corner of the screen to continue.

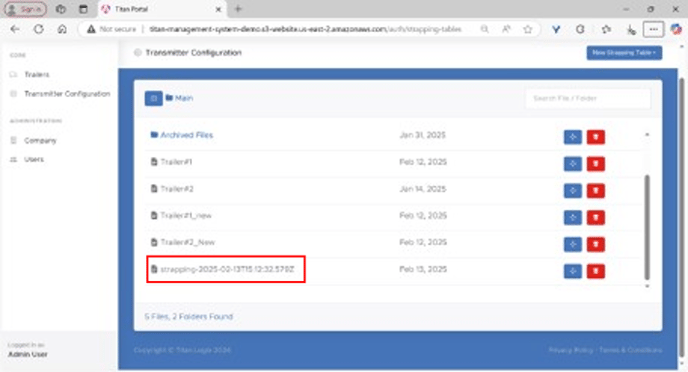

16. The newly created strapping table file is now in the list of files.
---
**Need more help?**
Contact one of our Titan Logix's Service Team members for more technical assistance.
**Phone:** 1-877-462-4085 (ext. 2)
**Email:** [service@titanlogix.com](mailto:service@titanlogix.com)
**Request Training:** [Click Here](https://help.titanlogix.com/kb-tickets/new?hsLang=en)
